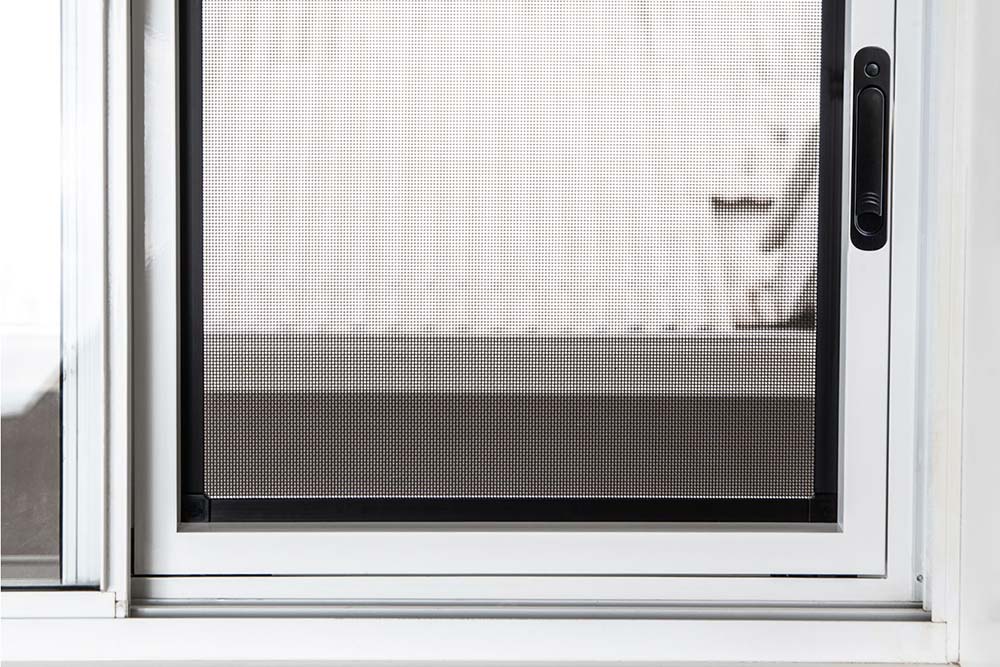

Hinged Window Screens

Think of the possibilities for an opening security window screen.

Being able to open your security screen allows for easy access. Be it passing food into an entertaining area, or in case of an emergency. The biggest advantage, on a day to day basis, is the accessibility to open the screen to clean both screen and window glass, for a perfect view.

Prowler Proof’s unique system includes European designed hardware, with high security multi-point locking. This hardware has been proven to perform time after time, so you can be assured that your screen will open when you need it to, and close properly everytime. Like all Prowler Proof security products, our Hinge window has been tested and passed the Australian Standard AS5039, so you can be confident that the screen will only open when you want it to.

Our unique fixing channel with H.I.T.™ – Hidden Installation Technology, not only hides all the fasteners so your screen doesn’t look like its been added as an after thought, it locks all of them away, removing tampering opportunities.

The purpose designed, dual action handle removes the chance of accidental opening.

Hinged Window Product Sheet (669 KB)

Hinge Window Screen Features

Take a look at the Hinge Window features. It's the quality of manufacture and focus on the small details like full access to the screen and window for cleaning that make our hinged window screens unique. If you're looking for superior quality and functionality, look no further.

Welded Corners

All Prowler Proof products feature fully welded frame corners. A weld can be stronger than parts joined by a screw or rivet. It looks better too. The weld means the screen looks like it's made in one piece. You will immediately notice the difference when you compare Prowler Proof with a product that is held together by screws or rivets.

Full Replacement Warranty

All Prowler Proof product is covered by our 10 year replacement warranty. It's Australia's only screen replacement warranty and means you will get a brand new product if something goes wrong with your screen.

Prowler Proof Warranty (766 KB)

Qualicoat Accredited Powder Coating

Prowler Proof is one of only 10 powder coating applicators in Australia to be approved by Qualicoat International. Qualicoat is an international benchmark of quality. Qualicoat International audits Prowler Proof’s powder coating line twice a year, to allow us to retain our certification. The powder coating is a key element in the appearance of a security screen. The long term benefit of choosing a Qualicoat certified screen is superior corrosion protection – as evidenced in the fact that Prowler Proof is the only security screen to pass the acetic acid salt spray test and the only manufacturer to offer a 10 year replacement warranty.

Maximised Daylight

The custom designed frame and sash ensure that the hinge window does not restrict the opening, and maximises the daylight through the window.

Unbreakable Bond

The heavy duty frame and ForceField or Protec mesh are joined together in our unique mechanical and chemical bond. It is virtually unbreakable and provides complete insulation… eliminating a major cause of corrosion.

European Hardward & High Security Locking Cams

Concealed hardware means intruders can’t see any points to attack, and euro-groove hardware is proven to perform time after time, so you know your screen will open when you need it to. There is also multi point locking for maximum security.

ForceField Marine Grade Stainless Steel Mesh

The black powder coated, 316 marine grade stainless steel provides greater resistance to pitting corrosion than other grades of steel. The 1.62mm aperture and 42.5% open area means ForceField provides excellent visibility and airflow. While 316 steel is .8mm diameter wire, it is ultra high tensile giving the mesh its strength to ensure it passes the shear and knife shear parts of the Australian Standards security test (AS5039).

Protec Perforated Aluminium

Protec uses 1.81mm thick, black powder coated, perforated aluminium sheet. With perforation diameters of just 2.5mm, the holes in the perforated aluminium sheet are too small to get through – even for mosquitoes, and with an open area of 39.2% Protec is still easy to see through and allows the breeze in for ventilation. Protec security doors and windows will also help keep solar heat and UV light out during summer – and reduce heat loss in winter.
